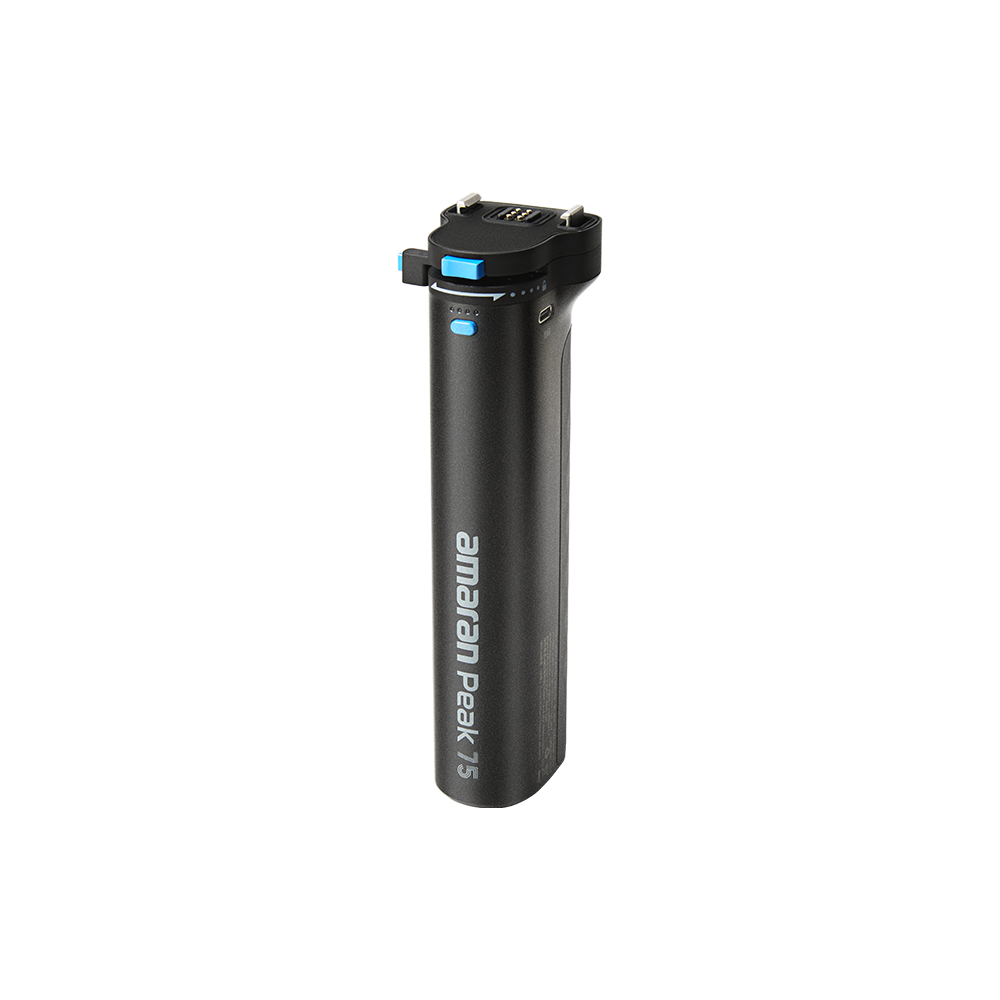

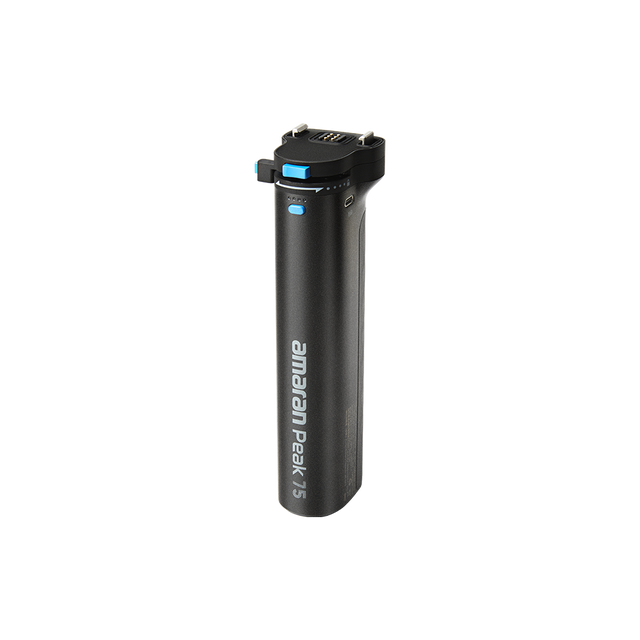

amaran Peak 75
1 7

amaran Peak 75

$85.00 USD

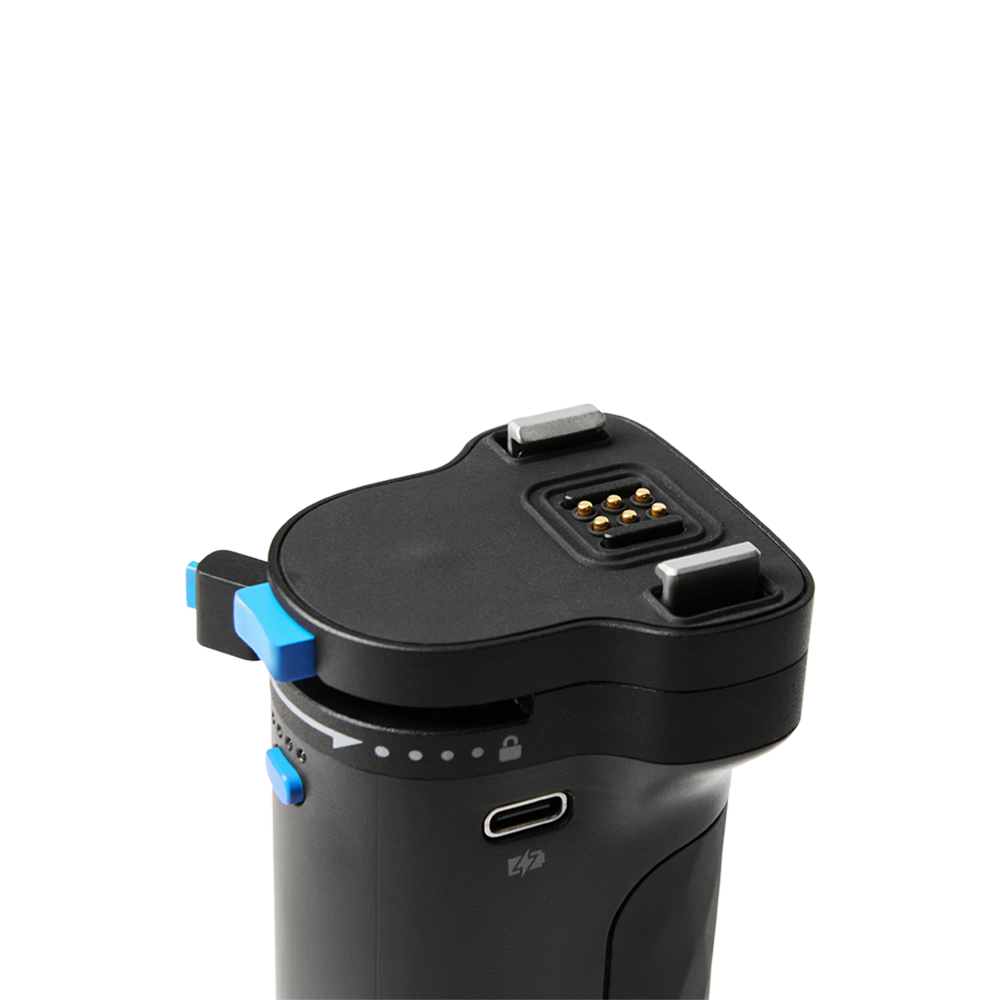

  • 66.6Wh all-in-one portable battery grip with native amaran Ace E-Lock

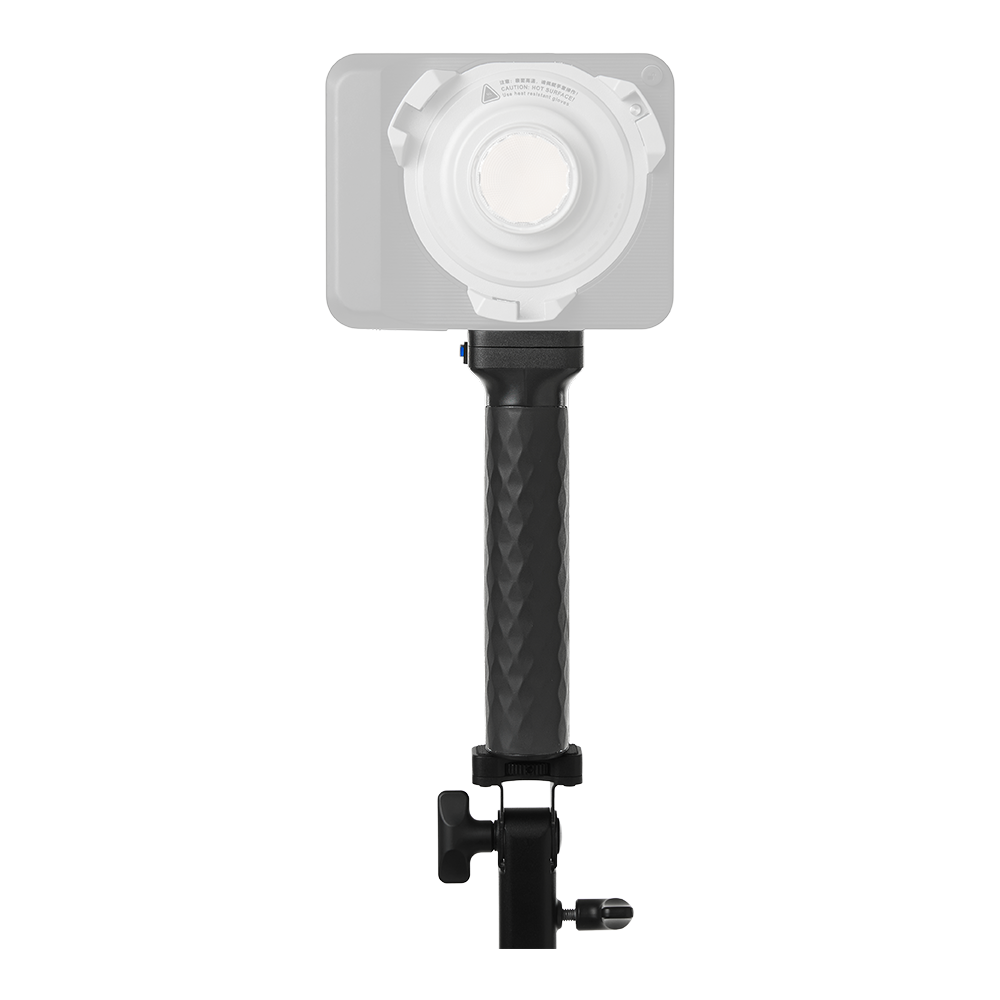

  • 75W cable-free output via Ace E-Lock: Powers amaran Ray 60c & Pano 60c at full power without cables; Ray 120c & Pano 120c at 50% output
  • Up to 85W combined constant output: Powers lights, cameras, phones via USB-C port and Ace E-Lock port
  • 65W USB-C PD fast charging: Recharge to 90% within 60 mins or 100% in 100 mins with PD3.0 charger

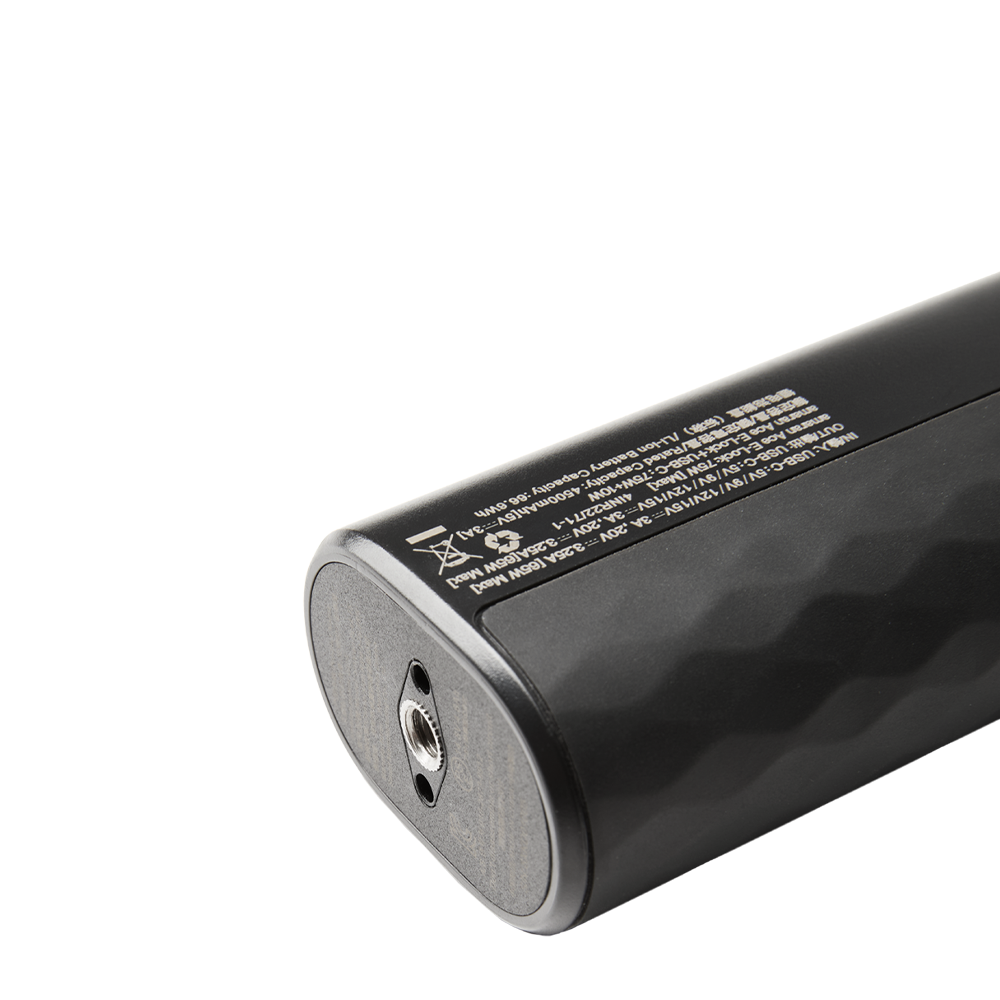

  • Native 1/4-20in screw for mounting to light stands, tripods, & other accessories

Compatible with

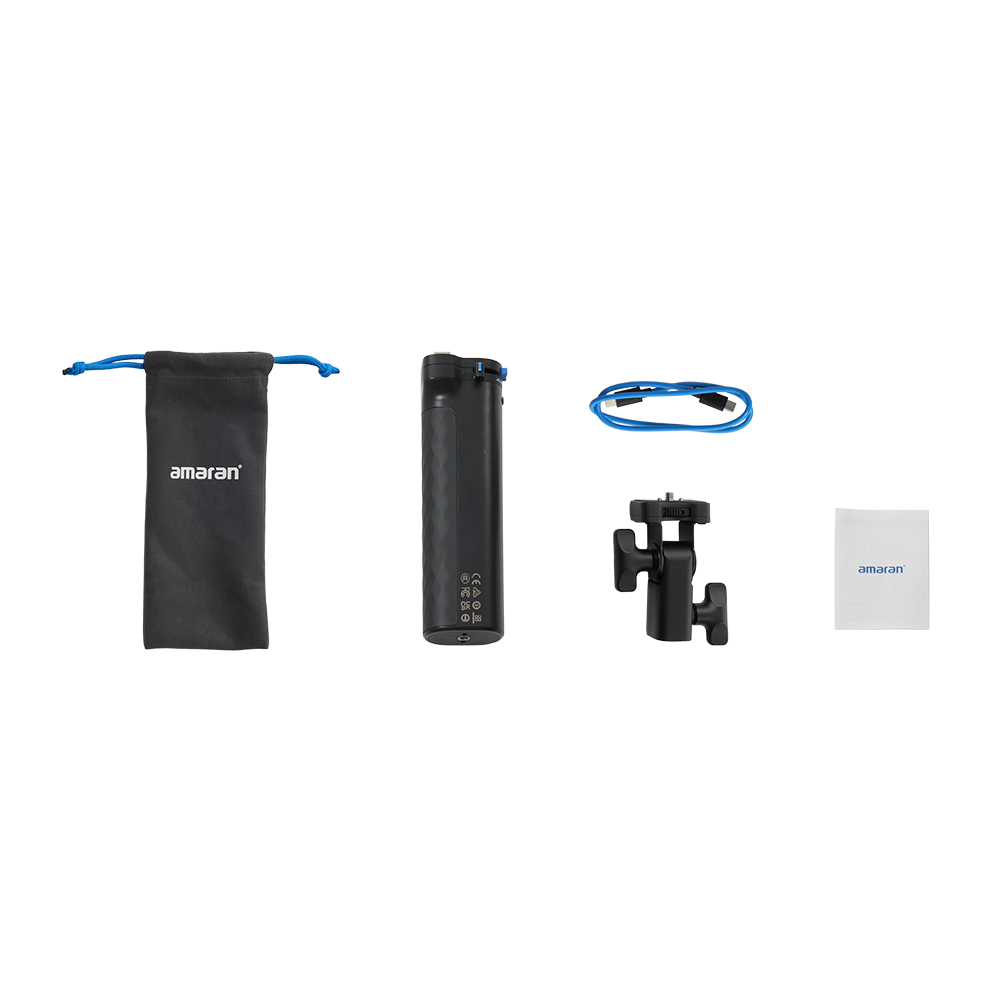

In the Box
  • 1x amaran Peak 75
  • 1x amaran 65W USB-C to USB-C Charging Cable (1.5m)
  • 1x amaran 1/4 to Baby Pin Adapter with Tilt
  • 1x Drawstring Pouch

Output

USB-C1

5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)

USB-C2

5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)

USB-A

5V⎓3A, 9V⎓3A, 12V⎓5A (30W Max)

USB-C1 + USB-C2

100W + 65W (165W)

USB-C1 + USB-A

140W + 30W (170W)

USB-C2 + USB-A

140W + 30W (170W)

USB-C1 + USB-C2 + USB-A

65W + 65W + 18W

Input

USB-C1

5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A

USB-C2

5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A

Technical Specifications

Battery Capacity (Max)

66.6Wh / 4,500mAh

Ports

1x USB-C, 1x amaran Ace E-Lock

Max Total Output

85W

USB-C Max Power Input

65W

Rated Capacity

4,500mAh (5V⎓3A)

Supported Protocols

PD, QC

Charge Time

70 Mins.

Operating Temperature

-10°C - 40°C / 14°F - 104°F

Storage Temperature

-20ºC - 80ºC / -4ºF - 176ºF

Control Method

Button

Cooling Method

Passive Cooling

Noise Level

0dBA

Cycle Life

800+ Cycles (80% Capacity)

Dimensions

18.6 x 5.3 x 3.6cm

Weight

530g / 1.17lbs
